Underpinning the Post and Beam Structure

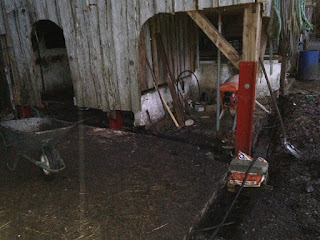

Corner post on sole plates don't look so bad on first sight
Had to come off
The barn is still on its original legs

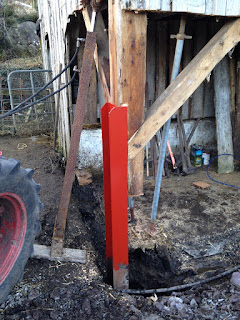

Steel post in place
ready for poring concrete

First Things First, The structure is still on some very weak legs

We used the Tractor hydraulic and ram to lift the corner to rectify the level as good as possible. All the post ends and sole plate timber was rotten beyond repair and had to be removed. We dug foundation trenches and made sure the new steel uprights reached solid clay bottom. There was still 4 feet of bog below the old foundation. no surprise the barn had sunk so far at the front.
